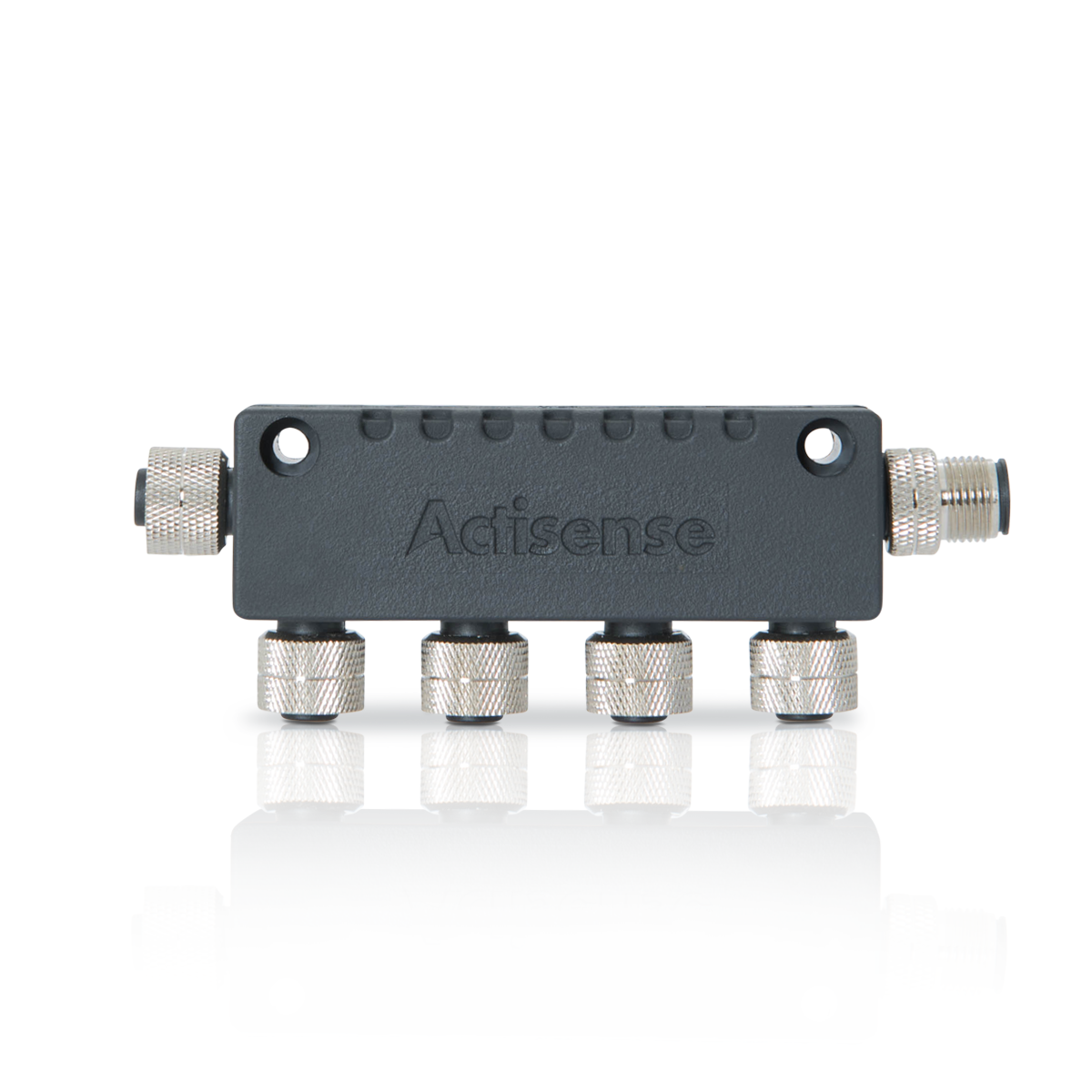

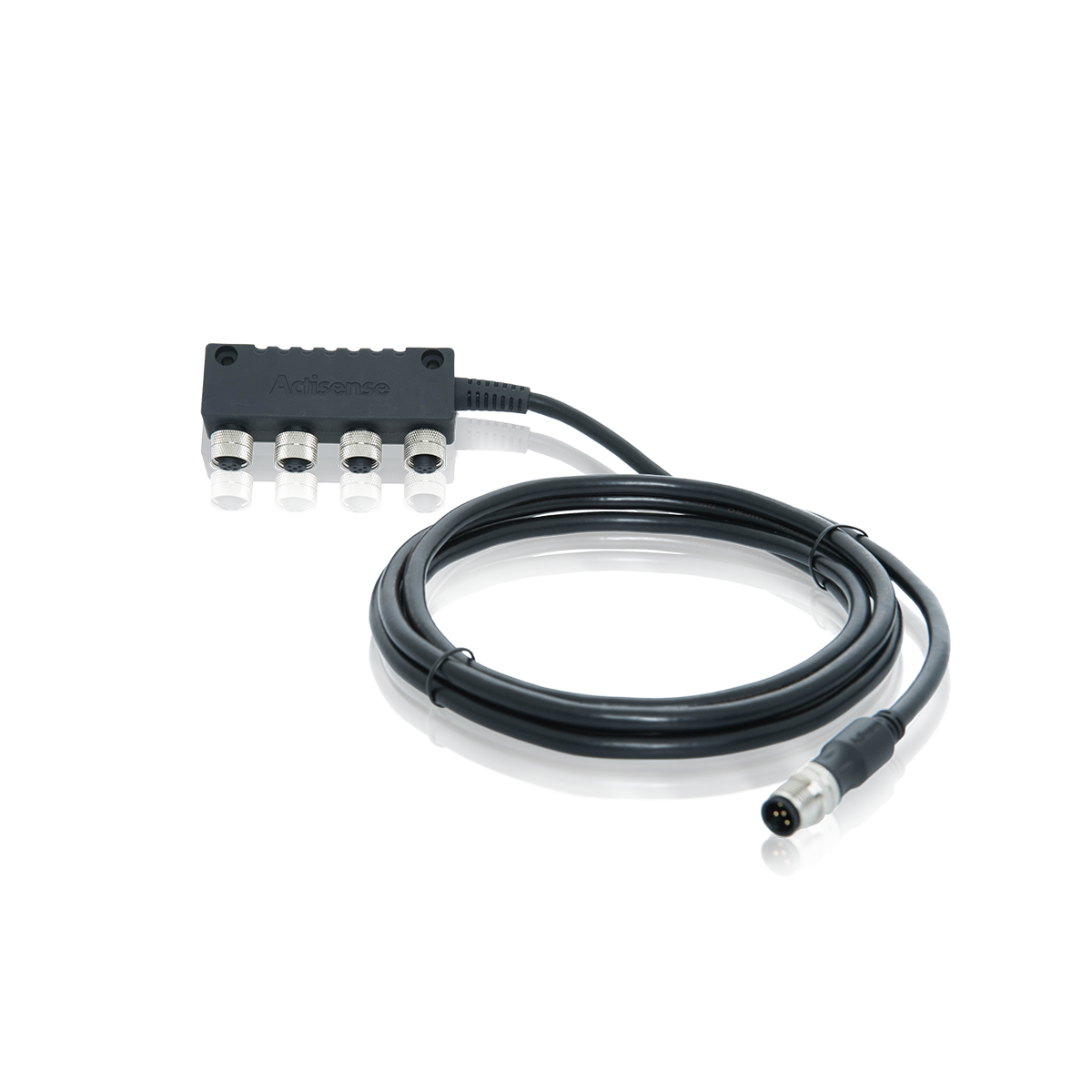

A2K-4WD NMEA 2000 4-Way Instrument Drop
Reduce your NMEA 2000 cabling requirements, saving time, space and money.
The Actisense 4-way drop makes it easier to reach up to four devices with a single cable.

Typically, when four devices need to be connected to an NMEA 2000 backbone, a T-piece and individual cable is required for each one. This can either mean excessive cabling demands or moving the backbone closer to your devices.

The 4-way drop makes it possible to shorten the length of each cable needed before reaching a T-piece.

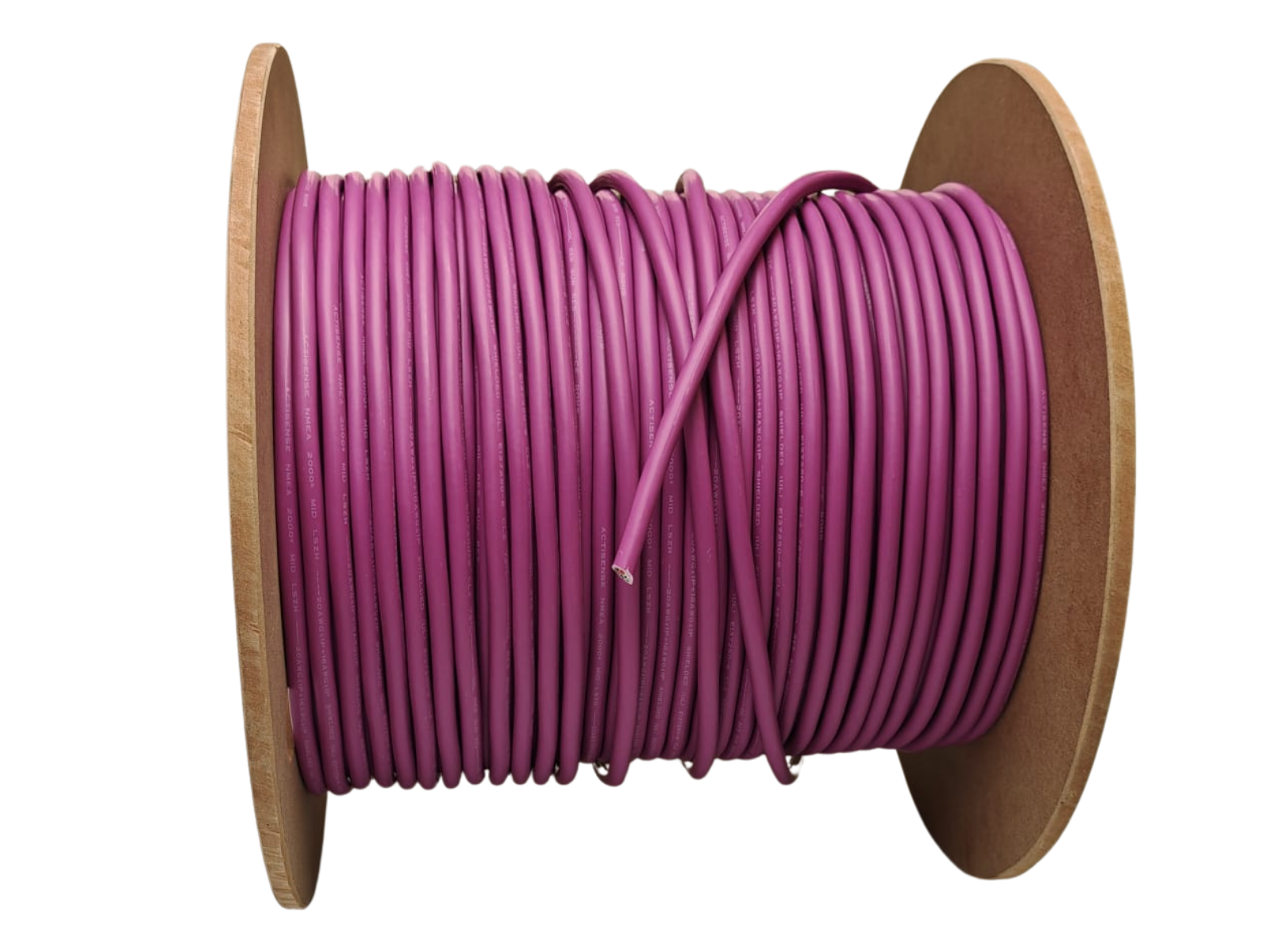

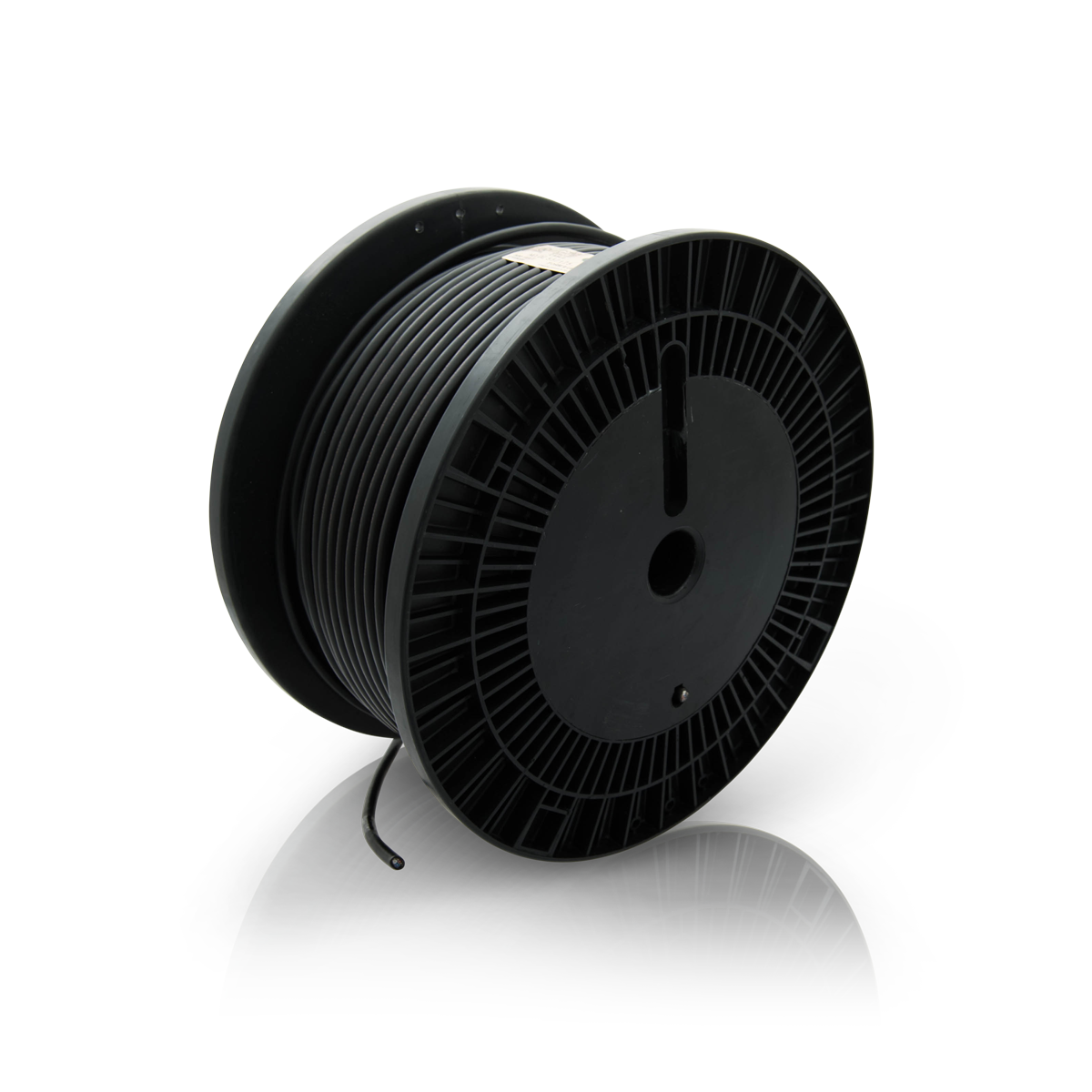

A2K-BULK-100M-MID Mid Bulk Cable Reel
Create or extend an NMEA 2000 backbone of flexible lengths to suit any installation. Enhanced safety with Low Smoke Zero Halogen (LSZH) jacket.

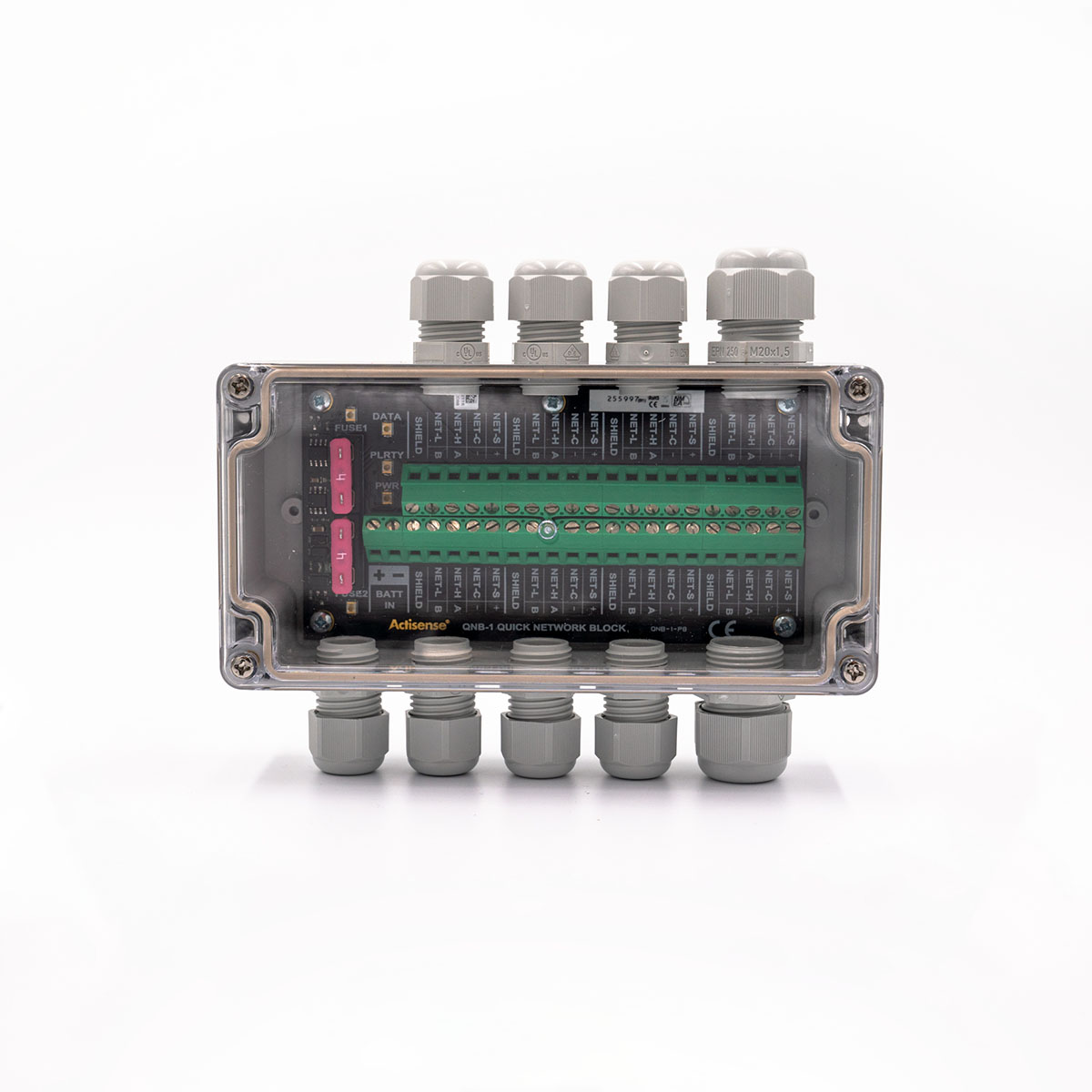

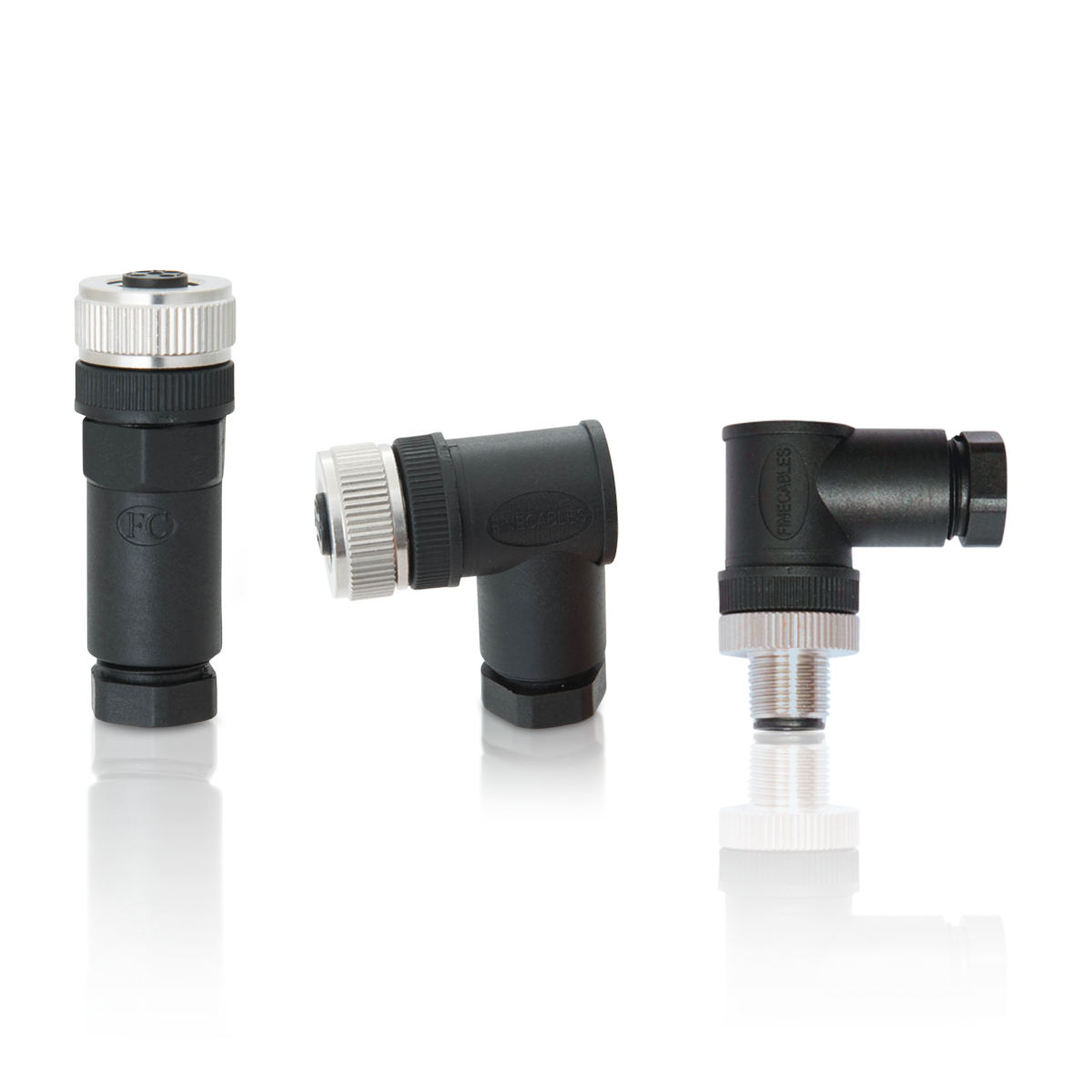

The Actisense NMEA 2000 Mid cable is available in 100 metre reels and ideal for use with the Actisense QNB-1 (Quick Network Block) or Field Fit Connectors (FFC).

NMEA 2000 cable includes five wire within a single waterproof cable: power and ground wires, two signal (data) wires and a drain wire. The drain wire connects to the cable shield which protects the signal, power and ground wires from external Radio Frequency Interference (RFI) and helps reduce RFI emission from the cable.

A2K-BULK-100M-MID

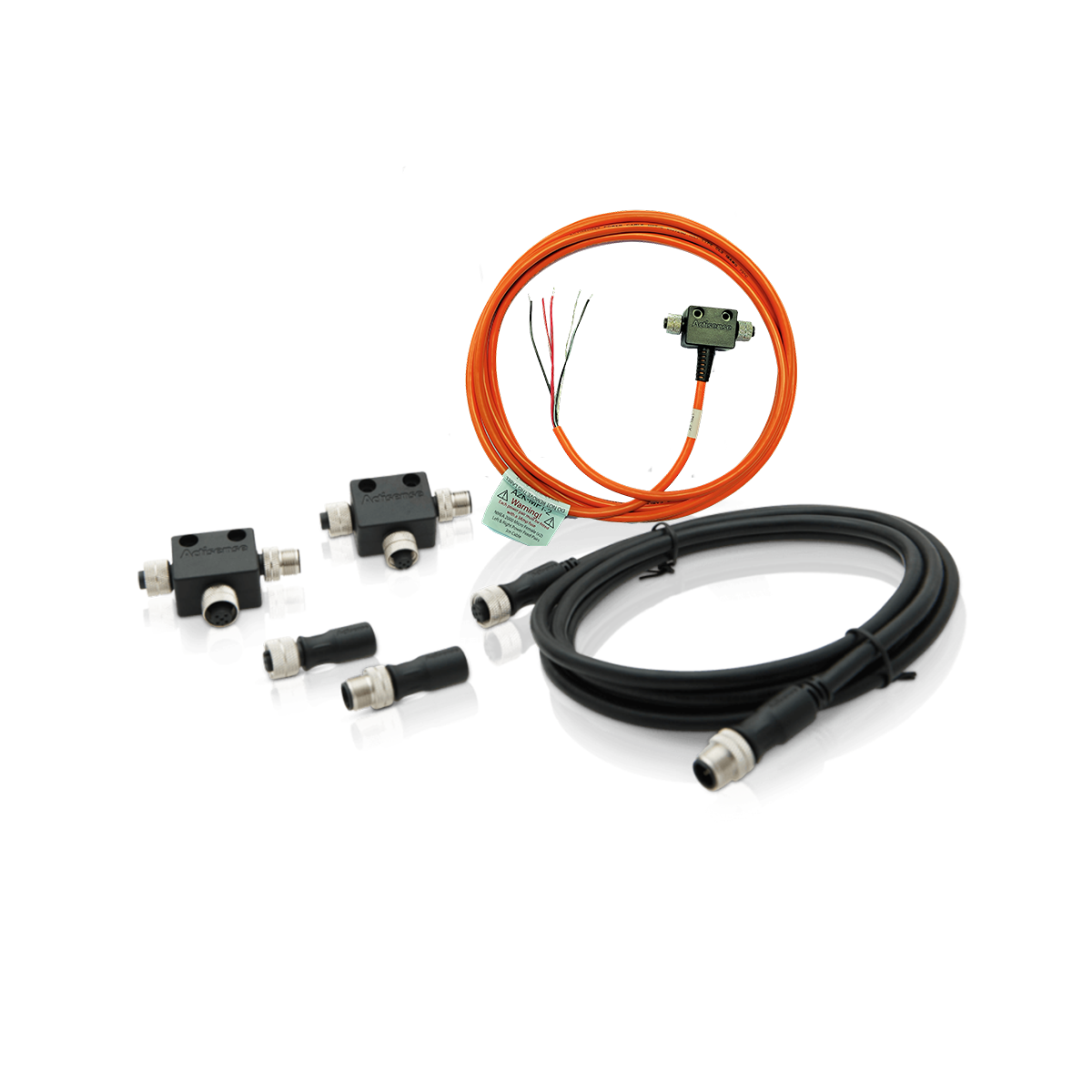

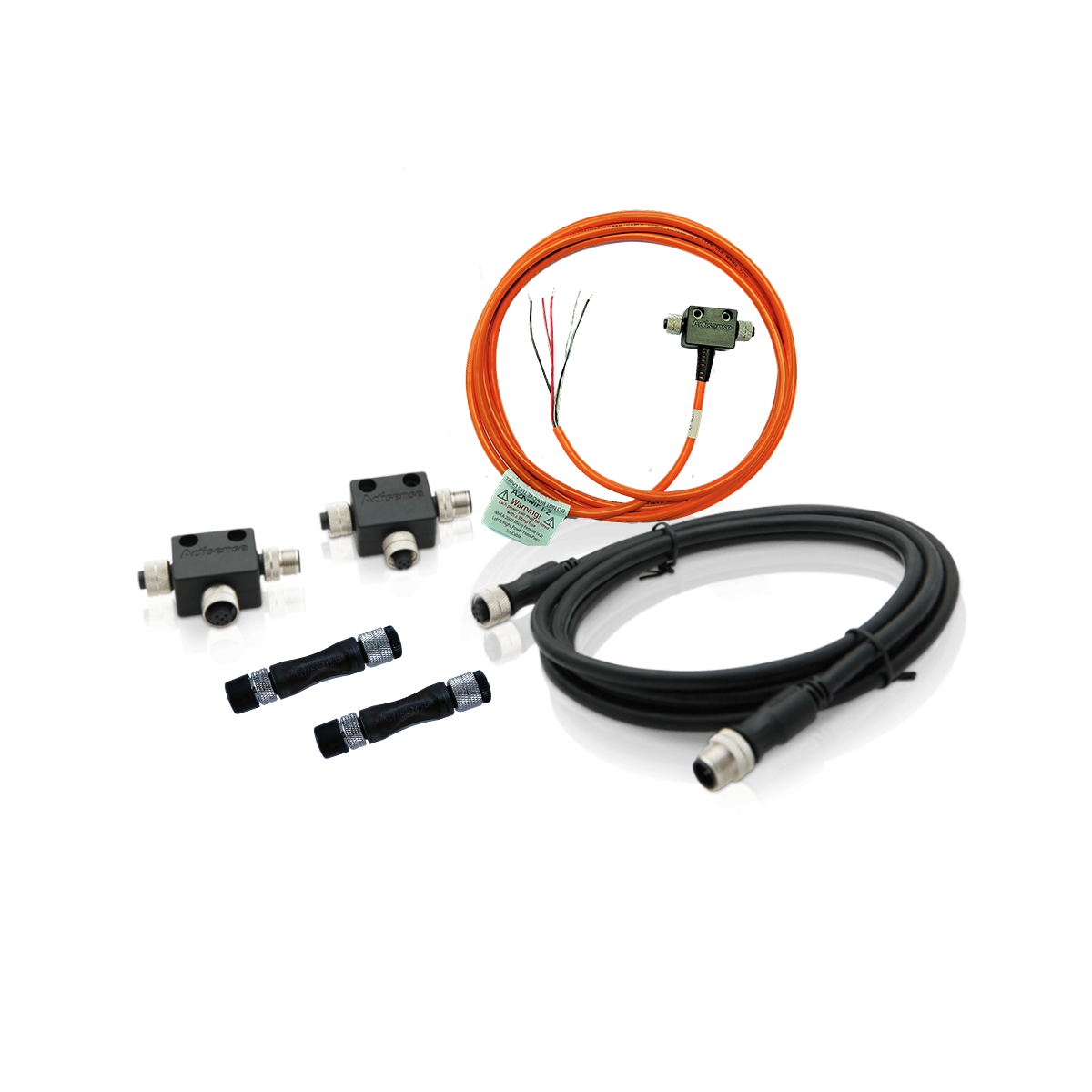

A2K-KIT-1a NMEA 2000 Starter Kit 1a (2m cable)
The NMEA 2000 Starter Kit from Actisense provides everything that is required to start an NMEA 2000 installation.
The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.

Read the overview below to discover the contents of this useful NMEA 2000 Starter Kit.

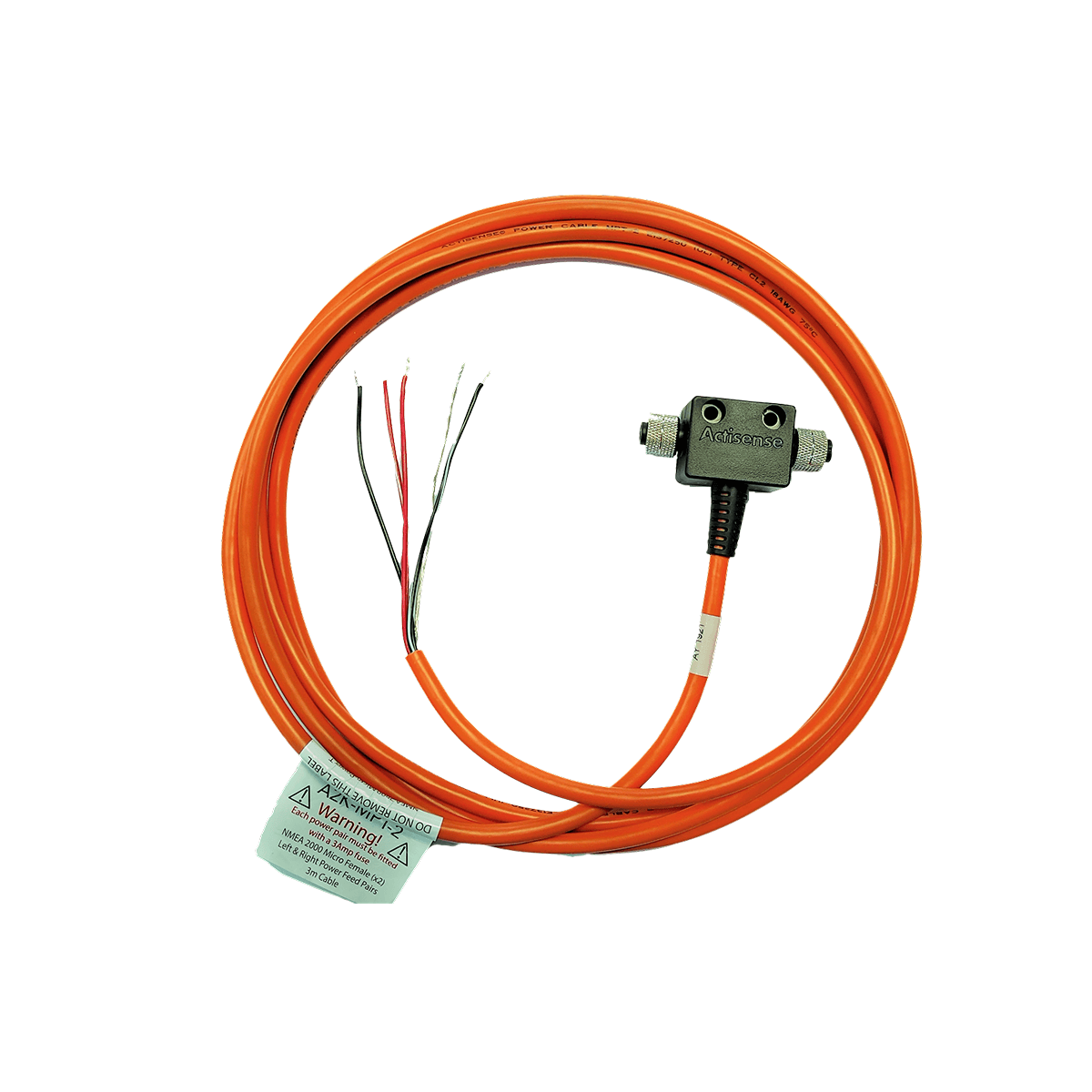

A2K-MPT-2 Micro Power T-Piece
The A2K-MPT-2 is a simple, safe and efficient method of powering an NMEA 2000 network.
NOW WITH IMPROVED STRAIN RELIEF!
The Micro Power T can easily provide power to the NMEA 2000 bus with micro fit connectors to enable ‘plug and play’ connectivity.

The Actisense designed connectors are quality engineered and shaped to allow easy and secure connections, using our specialist interconnect and NMEA knowledge. With its two female connectors, this power T is also fully Devicenet compatible.

The Actisense specified cable is UL certified, the three-metre cable length ensures that the A2K-MPT-2 offers complete flexibility when installing.

To order the Micro Power T-Piece, please use part number A2K-MPT-2.

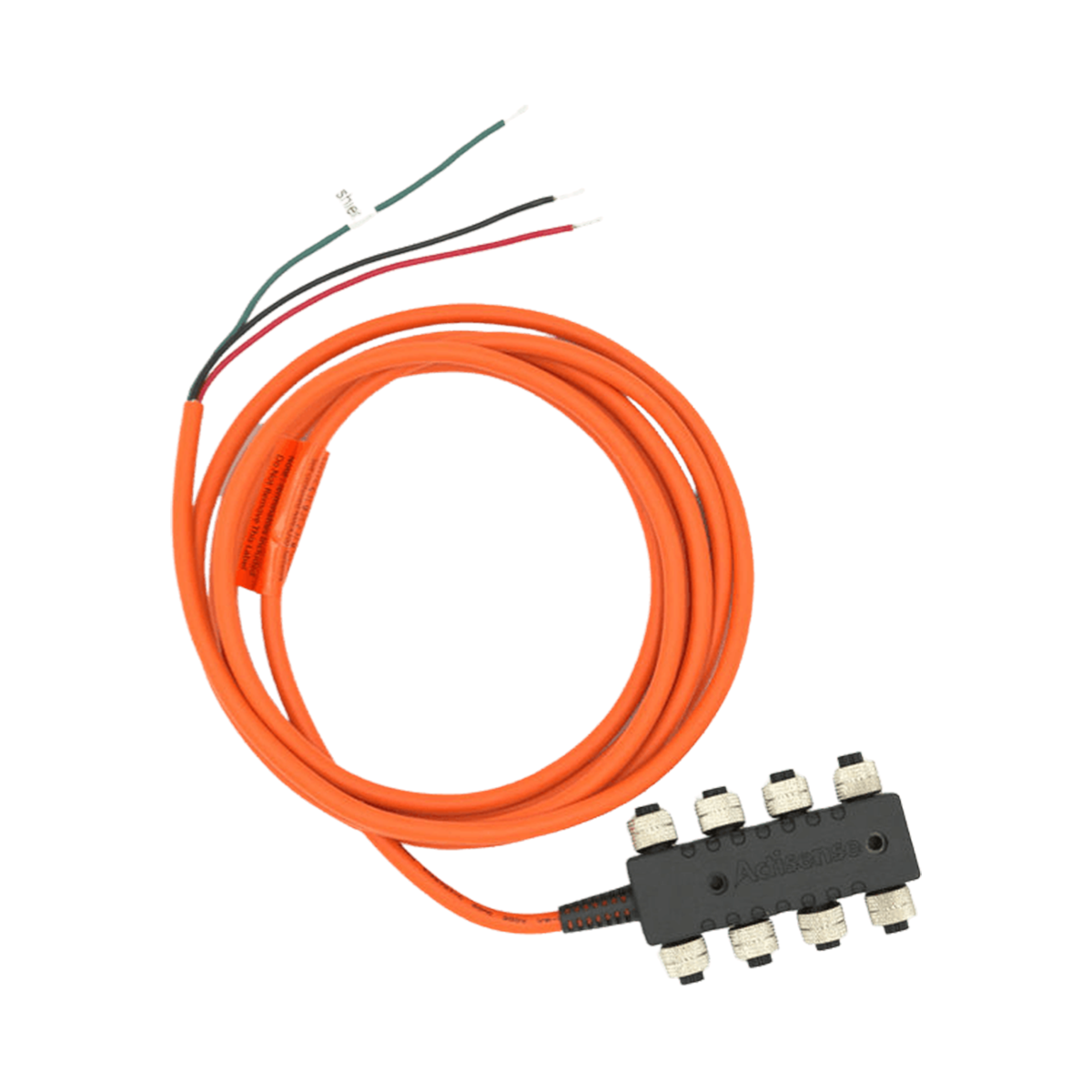

A2K-SBN-2 8 Way Self-contained Boat Network
Installing small NMEA 2000® networks is quicker and easier than it’s ever been with the Self-contained Boat Network (SBN) from Actisense.
The equivalent of eight T-pieces in a single case provides a significant time and space saving with no more connecting multiple T-pieces together. Termination resistors are built in which increases the saving on time and space.

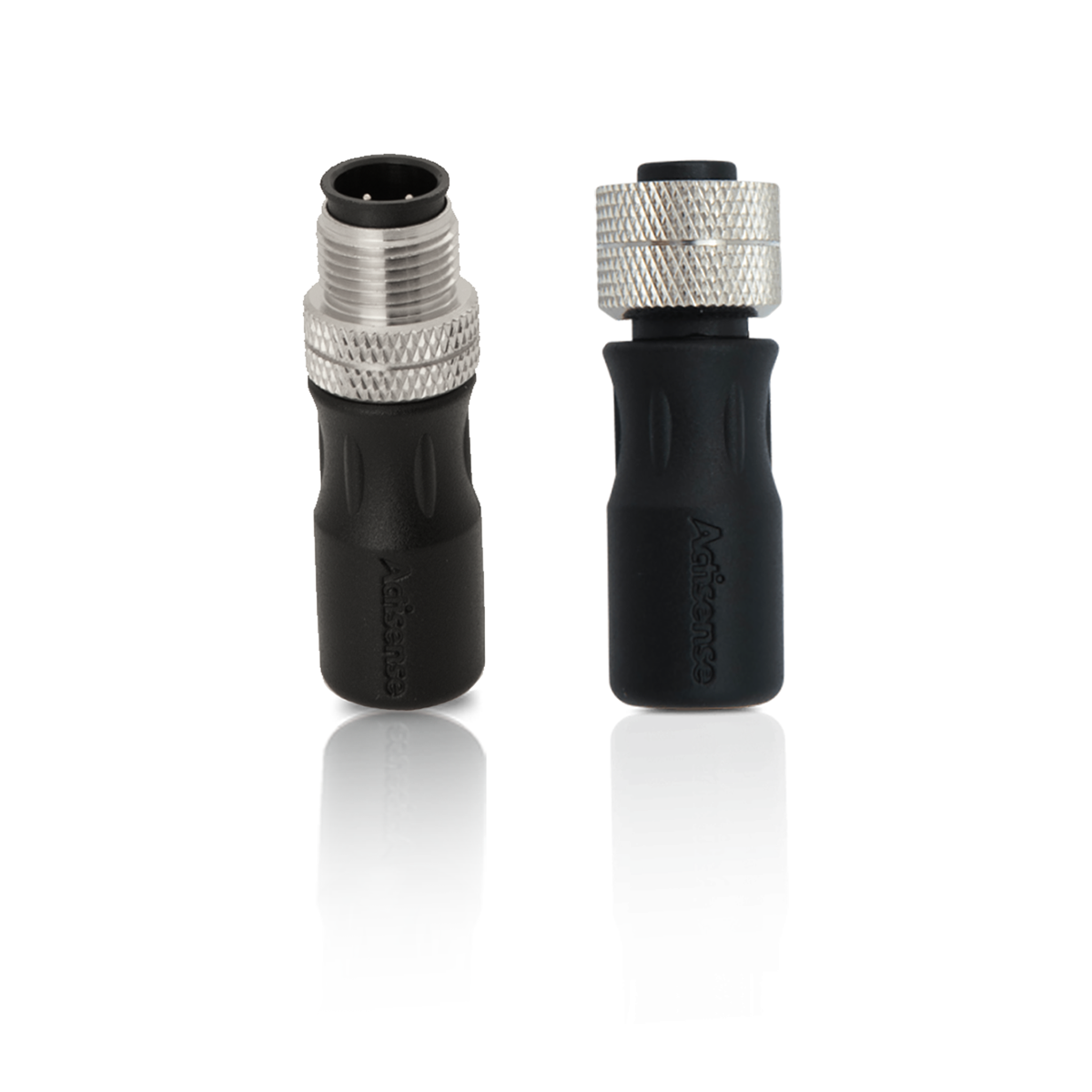

A2K-TER Micro Termination Resistors
Actisense terminators are exceptionally robust to withstand the harsh conditions of the marine environment and have been designed for quick and easy installation.

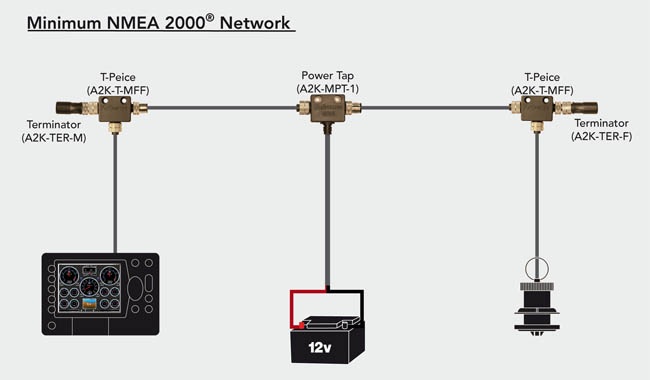

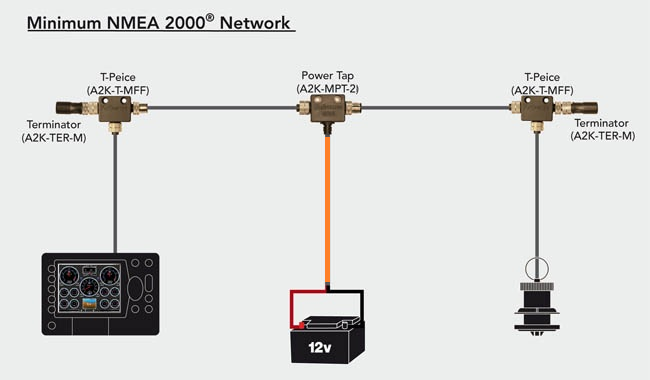

Each NMEA 2000 installation must have precisely two termination resistors installed, on at each end of the backbone, to ensure proper operation and signal integrity.

The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge

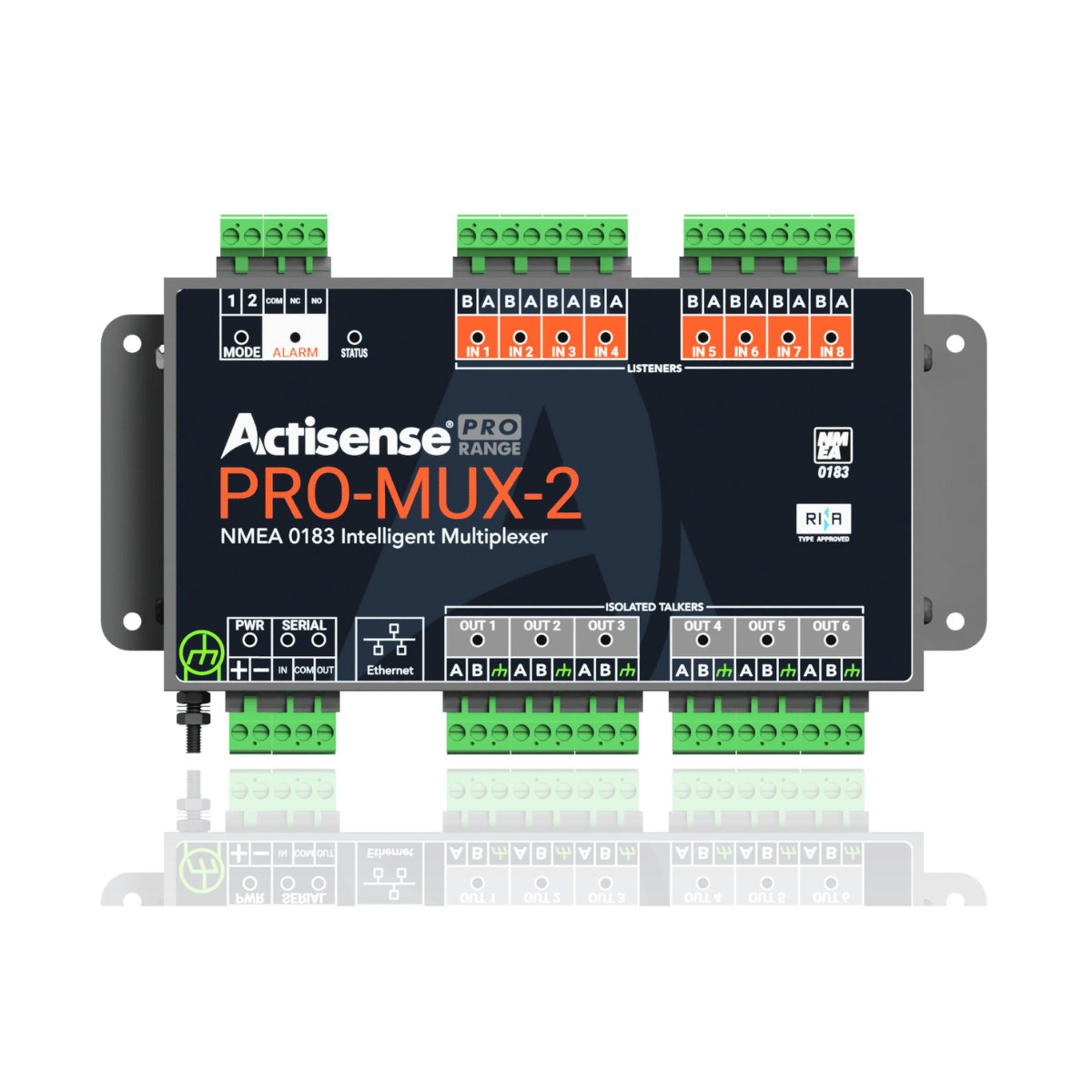

PRO-MUX-2 Intelligent Type Approved NMEA 0183 Multiplexer
Eight OPTO-isolated inputs and six ISO-Drive™isolated outputs. Offering device protection and excellent flexibility, all in one product.
Introducing the Actisense® PRO-MUX-2, the intelligent, type-approved PRO range multiplexer.

The PRO-MUX-2 is rugged, with a stainless steel housing, and provides isolation on all inputs and outputs. With eight NMEA 0183 inputs, six NMEA 0183 outputs, a bi-directional serial port and an Ethernet port, the PRO-MUX-2 is a perfect solution for larger leisure vessels, commercial shipping and is a great addition for systems that require type-approved devices.

The PRO-MUX-2 is designed to suit the majority of NMEA 0183 systems, from leisure through to class vessels.

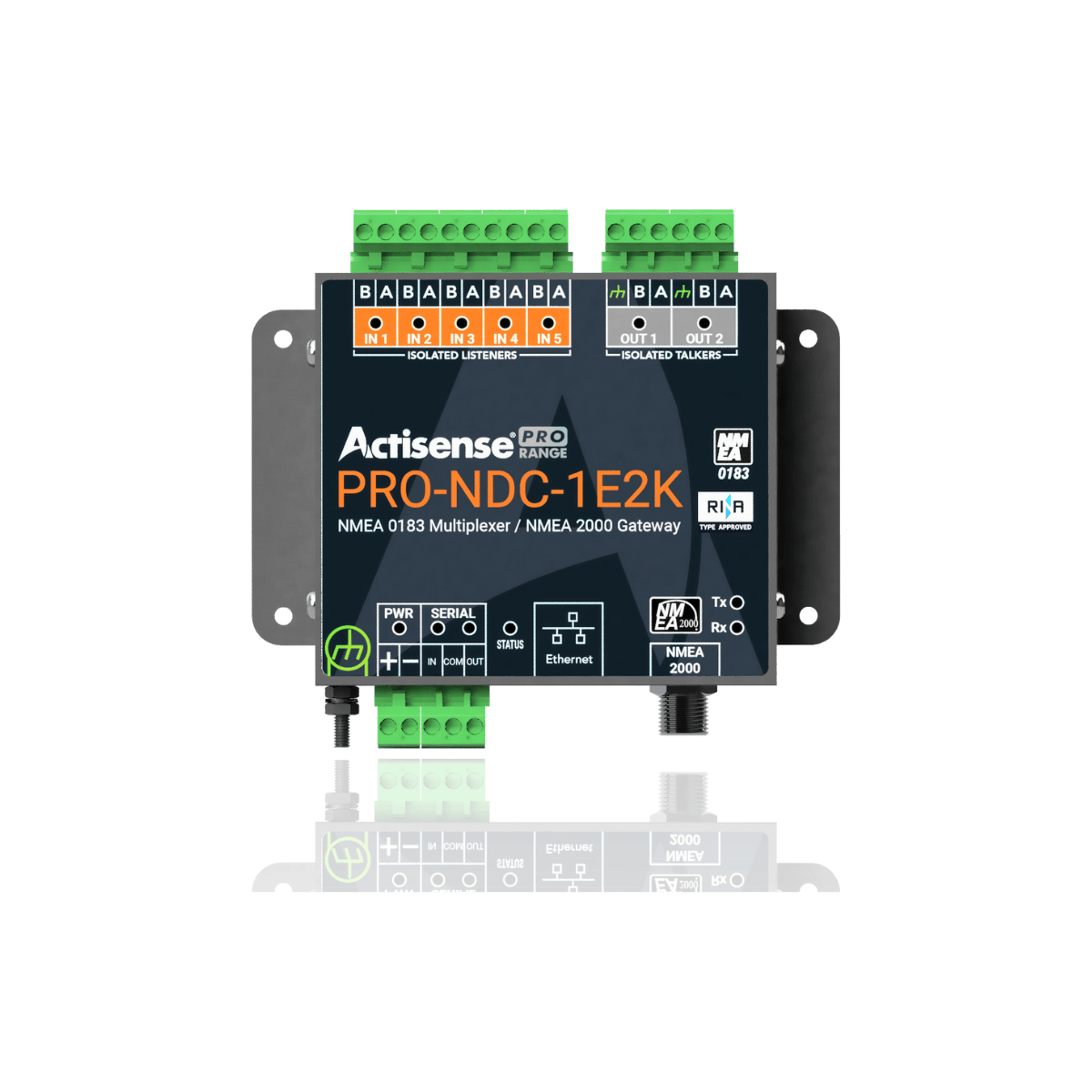

The Actisense PRO-NDC-1E2K is a RINA Type Approved, intelligent NMEA multiplexer and integrated NMEA 2000 gateway designed for commercial vessels, superyachts, and complex marine refits. Engineered to solve protocol interoperability challenges, the Actisense PRO-NDC-1E2K seamlessly filters, routes, and converts navigation data across NMEA 0183, NMEA 2000, and high-speed Ethernet networks.

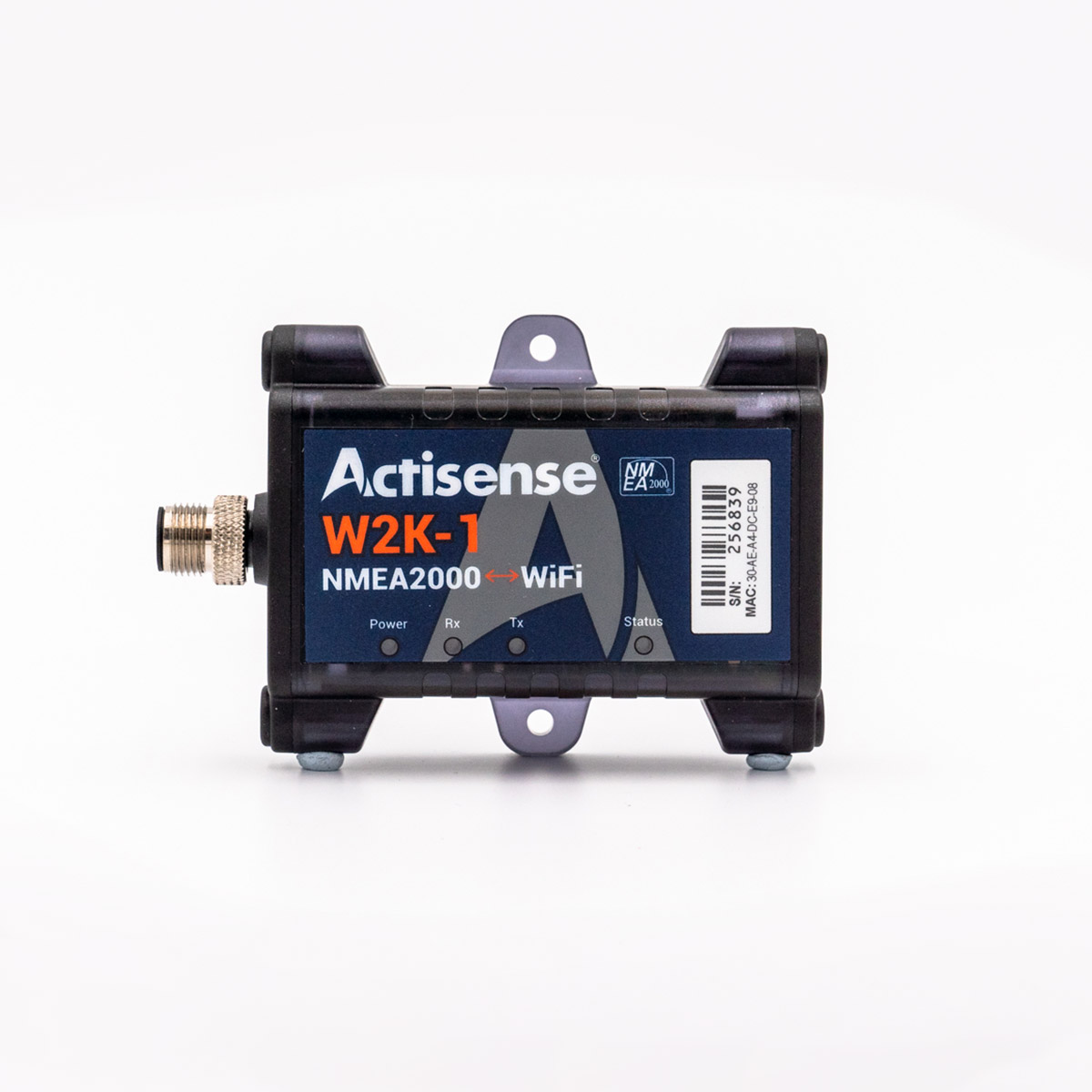

W2K-1 NMEA 2000 Wi-Fi Gateway

The W2K-1 NMEA 2000 Wi-Fi Gateway is a rugged and reliable NMEA 2000 to Wi-Fi Gateway with built-in data logger and Actisense-i diagnostic tools.
Transfer data from an NMEA 2000 backbone to any device (e.g laptop, tablet or smartphone) connected to the W2K-1 via Wi-Fi and additionally convert this data to NMEA 0183 using Actisense’s renowned conversion engine. Actisense-i is a suite of diagnostic tools and health checker for your network.

It is fully compatible with the industry’s most popular apps.
